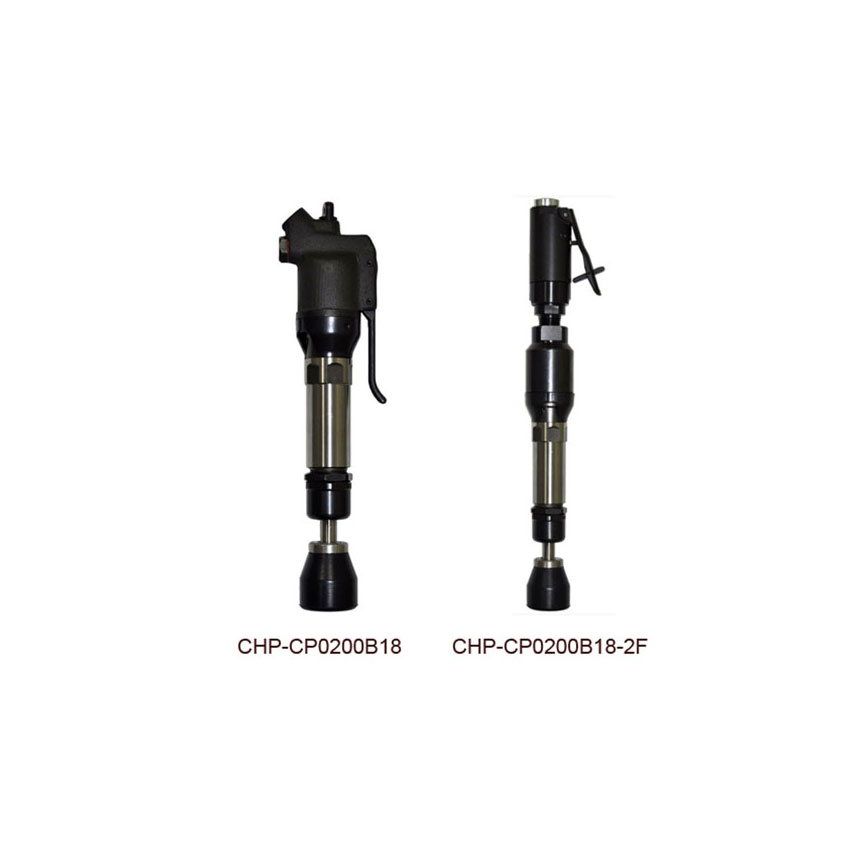

Chicago Pneumatic 1800 BPM Bench Rammer

Equipment & Tools

SKU #1811029
Availability: In Stock
Price: $808.95
$808.95
  • Ideal for foundry applications
  • Comfortable operation and high production
  • Bench rammers used for casting sand in cylinders, large molds
  • High efficiency due to the high bpm
  • Extra durability due to heat treated parts
  • Push Lever

Specifications

  • Blows per minute: 1800
  • Bore: 0.71" / 18 mm
  • Stroke: 1.96850393700787" / 50 mm
  • Butt diameter: 1.61" / 41 mm
  • Net weight: 3.3 lb / 1 1/2 kg
  • Length: 11.03125" / 280 mm
  • Average air consumption: 14.1 cfm
  • Actual air consumption: 14.1 cfm / 400 l/mn
  • Air inlet thread size: 0.25 "
  • Min. hose size: 3/8" / 10 mm
  • Sound DBA pressure: 95 db(A)
  • Sound Power: 106 db(A)
  • Vibration α (ISO-28927-9): 19.4 m/s²
  • Vibration K (ISO-28927-9): 5.9 m/s²
