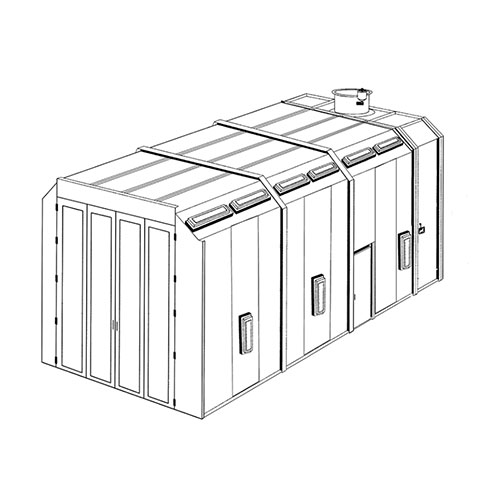

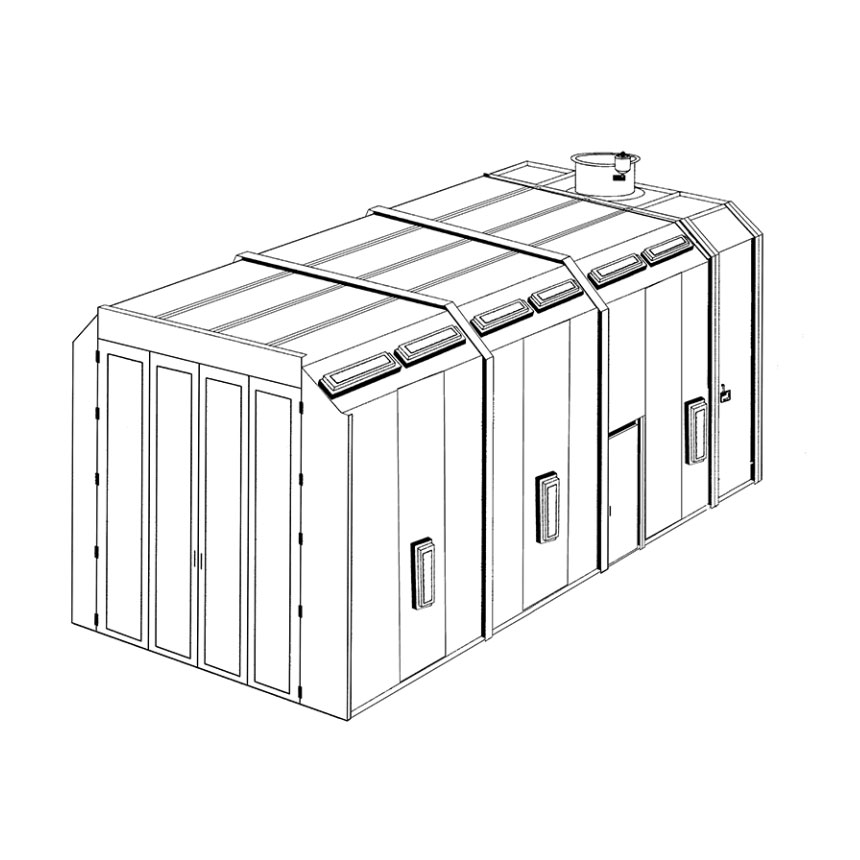

RTT 35-Foot Deluxe Semi-Truck Paint Booth

RTT

SKU #1805650
Availability: In Stock
Price: $41,818.00
$41,818.00

RTT 35-Foot Deluxe Semi-Truck Paint Booth includes:

  • 24 Long-lasting LED light fixtures
  • Window on the Personnel Access Door
  • External dimensions: 34'4" long x 17'0" wide x 18'6" high.
  • Large interior space: 16' x 16' x 34' inside.
  • M6 x 4.4 I-beam supports.
  • All panels are air-tight, 18 gauge galvanized prime steel fastened with 5/16" bolts.
  • All panels have 2" flanges with pre-punched holes for easy nut-and-bolt assembly.
  • Gabled roof design gives better air flow, lighting and overall strength.
  • 42" diameter tubeaxial fan with aluminum spark-proof blades.
  • Fan motor is 3 phase 208/240/480 volt, 25,600 c.f.m. @ .5" static pressure. (single phase optional)
  • Air solenoid valve shuts air off when door is opened. (optional)
  • Booth uses 20" x 20" x 2" intake filters and 45" x 84" blanket exhaust filters
  • Equipped with Dwyer manometer draft gauge for exhaust filter monitoring.
  • Meets NFPA 33 & OSHA 1910 guidelines. (check your local codes for local permit requirements)
  • All quality components proudly made in the USA!
  • White powdercoating is optional

Indoor Use Only!

RTT 3 Year Warranty

3 YEAR WARRANTY ON ALL RTT PAINT BOOTHS
The quality and workmanship of RTT paint booths allows them to offer a Three (3) Year Warranty* provided the customer utilizes RTT high performance "A-Series" exhaust filters. Customers must also be registered, and you must have sales information that A-Series filtration was purchased in years 1, 2 and 3 of existence.



Ships by truck freight. You will be contacted with shipping charges before order is processed.
Forklift required at time of delivery.

Get more information on our Paint Booths

Call Toll Free to speak to a Paint Booth Specialist: 800-367-6575
