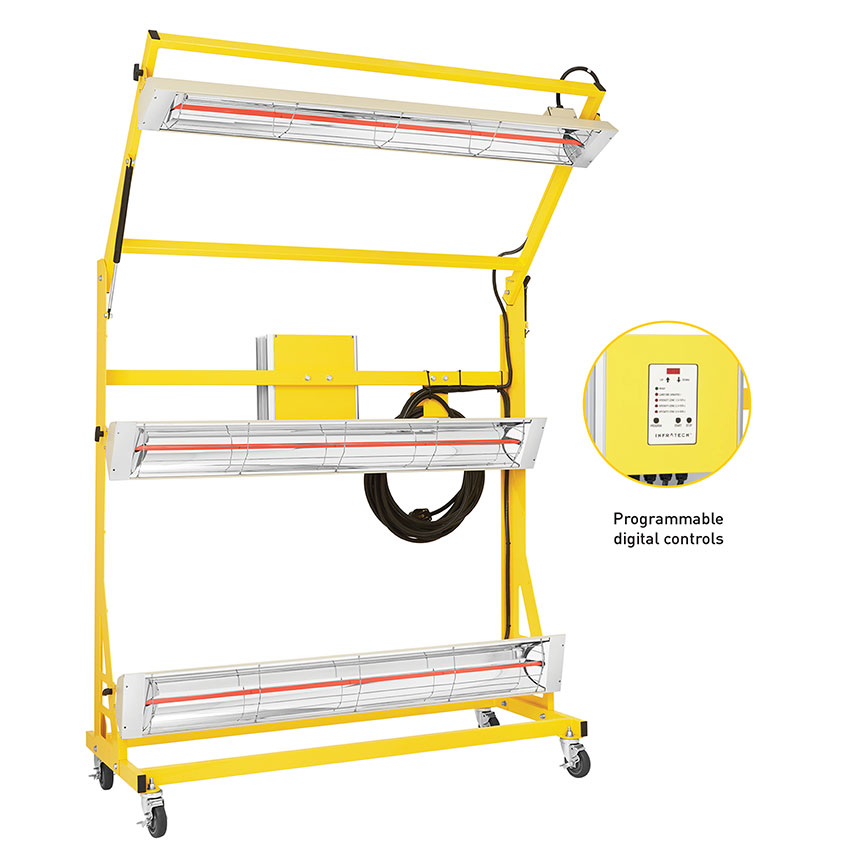

Infratech Medium Wave 9,000-Watt Infrared Portable Curing Lamps S-9000

Infratech brings to you the S-9000-P series, which is their largest selling unit to auto body repair shops in the country. The Infratech Medium Wave 9,000 Watt Infrared Portable Curing Lamps feature a 6' x 8' (48 square feet) heating and curing area, making it ideal for complete multiple panel repairs. The unit has an adjustable top arm that is designed to reach the roof lines or curing hoods easily. Each heater head has its heat output control, which can be independently controlled with the on and off switch. It is also equipped with a 0 to 60-minute timer with an automatic shut-off.

The Infratech Medium Wave 9,000 Watt Infrared Portable Curing Lamps are available in four different configurations, namely, the S-9000-P1, the S-9000-P2, the S-9000-P3 and the S-9000-P4 units. All the units are 61" in length and weigh 240 pounds, have a 50-foot long cord with a NEMA type plug, and are also fitted with casters with wheel locks. This makes the lamp units portable and easy to maneuver. It has a powder coated finish and does not emit any harmful UV radiation, making it compliant with UL's (Underwriters Laboratories) safety requirements. The S-9000-P series ensures maximum efficiency in minimum time.

Key Features of the Infratech Medium Wave 9,000 Watt Infrared Portable Curing Lamps:

• UL Listed
• 48 square feet of curing area
• 50-foot cord with NEMA-type plug
• Casters with wheel locks
• Adjustable top arm
• No UV radiation
• Powder coated finish
• Offered in four different configurations
• Made in the USA

Technical Specifications

• Curing area: 48 square feet
• Length: 61"
• Weight: 240lbs
• Cord: 50 feet
• Heating area: 6' x 8'
• Timer: 0-60 minutes

S-9000-P1 Specifications:

• Part #: 14-1100
• Volts: 240V, 1 Phase
• Amps: 37.5
• Watts: 9,000
• Shipping Weight: 240lbs
• Length: 61"

S-9000-P2 Specifications:

• Part #: 14-1105
• Volts: 208V, 1 Phase
• Amps: 43
• Watts: 9,000
• Shipping Weight: 240lbs
• Length: 61"

S-9000-P3 Specifications:

• Part #: 14-1110
• Volts: 240V, 3 Phase
• Amps: 27
• Watts: 9,000
• Shipping Weight: 240lbs
• Length: 61"

S-9000-P4 Specifications:

• Part #: 14-1115
• Volts: 208V, 3 Phase
• Amps: 31
• Watts: 9,000
• Shipping Weight: 240lbs
• Length: 61"

Please specify the voltage and electrical phase you require at time of ordering

Ships by truck freight. You will be contacted with final shipping charges. Forklift required at time of delivery, If no Forklift is available you can request a liftgate for an additional charge.
