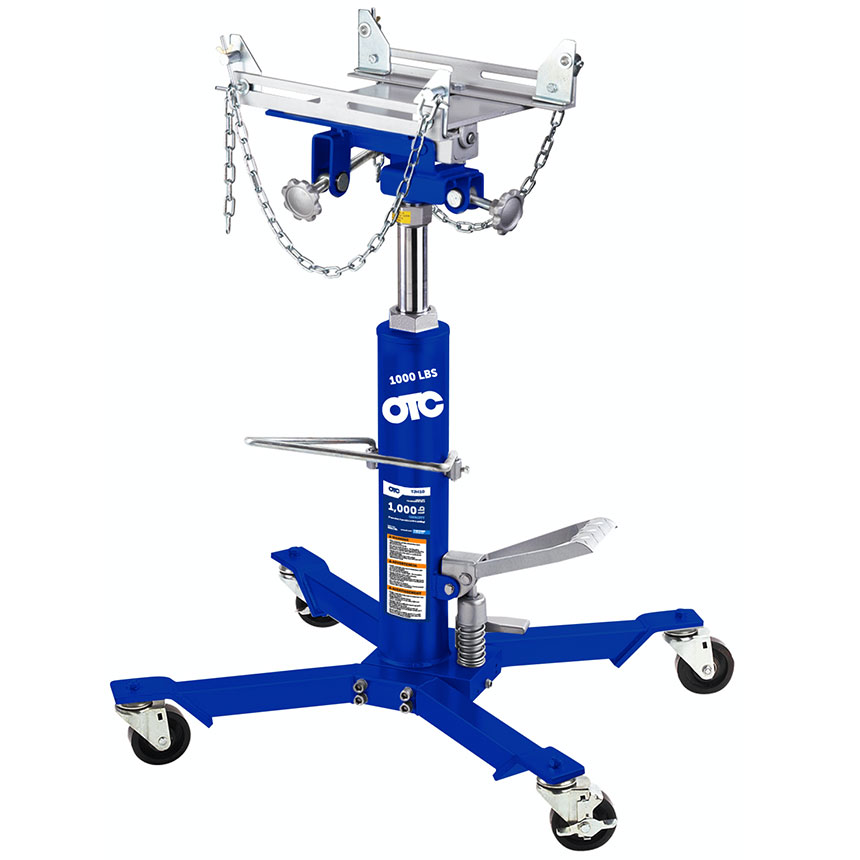

OTC 1000-LB Capacity High Lift Transmission Jack TJH10

Jacks

SKU #1816376
Availability: Out of Stock
Price: $2,021.95
$2,021.95

A high-lift transmission jack with universal saddle and adjustable corner brackets and safety chains for optimum positioning of the load. The head tilts front to back and side to side to make removal and installation of transmission and driveline components easier. Big, easy-to-grip knobs make mounting head adjustments simple, and the included safety chains securely hold components during removal, transport and installation.

Hydraulic system features flash-chromed rams to prevent rust from entering the system, prolonging jack life. A foot-operated pump and lowering pedal allow for ease of control when positioning or removing a transmission. A built-in safety overload system prevents the jack from being used beyond its rated capacity and two locking casters help keep the jack in position during use.

  • Meets all ASME PASE-2019 safety standards.
  • Wide base with 4" swiveling polyurethane wheels
  • Ideal size and capacity for the removal and installation of automobile transmissions.

Specifications:

  • Capacity: 1,000 lbs
  • Min height, retracted: 35"
  • Max height: 71-5/8"
  • Forward tilt (max): 24°
  • Backward tilt (max): 19°
  • Side tilt (Max, side/side): 20°
  • Leg width: 37-1/8"
  • Wheel size: 4"

Compatible with the following OTC transmission adapters, and more(sold separately):

  • 1870 Universal transmission adapter
  • 1758 Fuel tank handler
  • 1797 Heavy-duty clutch adapter

WARNING WARNING: This product can expose you to chemicals including Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause cancer, and Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.

Ships by truck freight. You will be contacted with final shipping charges. Liftgate delivery available upon request for an additional charge.
