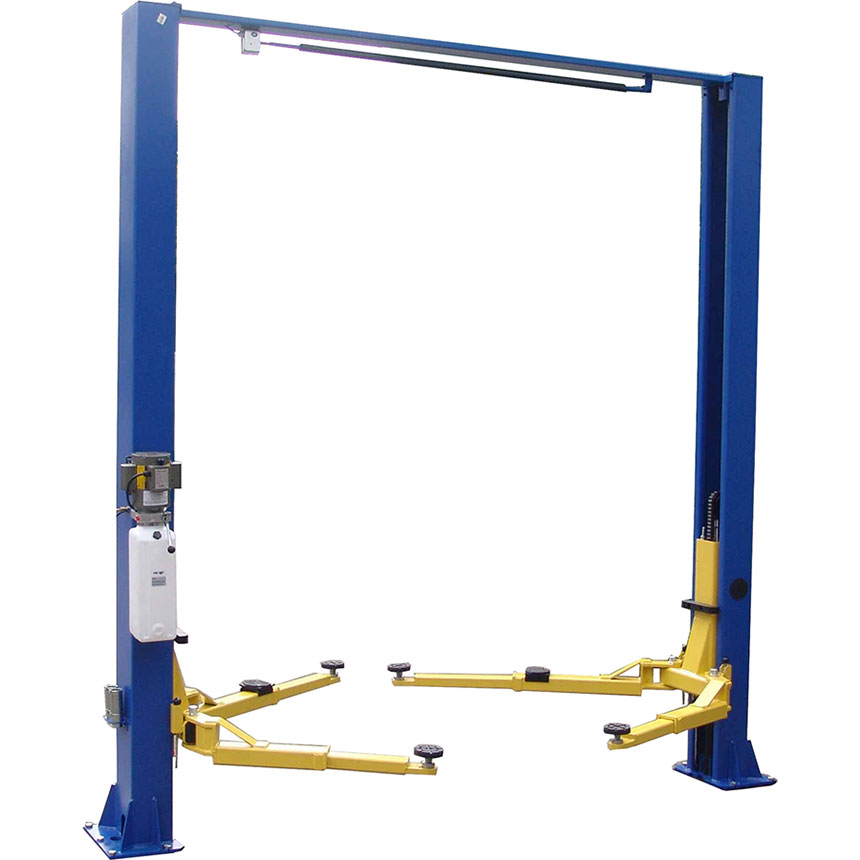

Two Post, 9,000 Lbs. Lifts
These high quality Two Post Lifts feature a heavy-duty leaf chain, steel pulleys and a high-strength cable equalization system. Built for safety and reliability.
- 9,000 lb. lifting capacity
- Dual cylinders with low friction chain rollers
- Low profile automatic arm restraints
- 1 1/2" and 5" stackable drop-in height adapters
- Powder-coated paint finish
- Free mounting hardware
- Power requirements: 220V, 20A, 1 PH
- Shipping weight: 1370 lbs.
Features an Electric override automatic safety shut-off
Specifications:
Overall Height: 111.9"
Width (w/ Power unit): 138"
Max Lift Height: 72"
Width Between Columns: 113.6"
Min Pad Height: 4"
Drive Thru Clearance: 96"
Lifting Speed: 50 s
Lift Type: Asymmetric, Clear Floor
Front Arm Reach: 29" - 41"
Rear Arm Reach: 37" - 57"
Max Load Per Arm: 2250 lbs.
Cable Diameter: 3/8"
Column Size: 7.25' x 10.87"
Column Steel Thickness: 5 mm
Carriage Steel Thickness: 5 mm
Arm Steel Thickness: 6mm
Some Assembly Required. Forklift required at time of delivery.
